Cargobot Heavy ASMC101

Ashvida Robotics’ Material Handling Robots

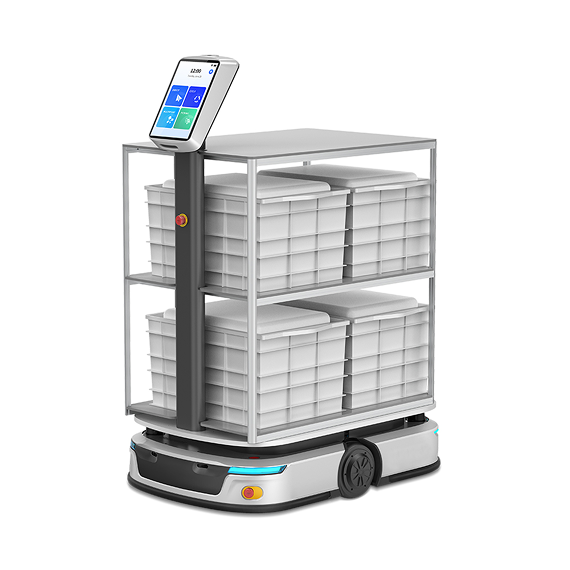

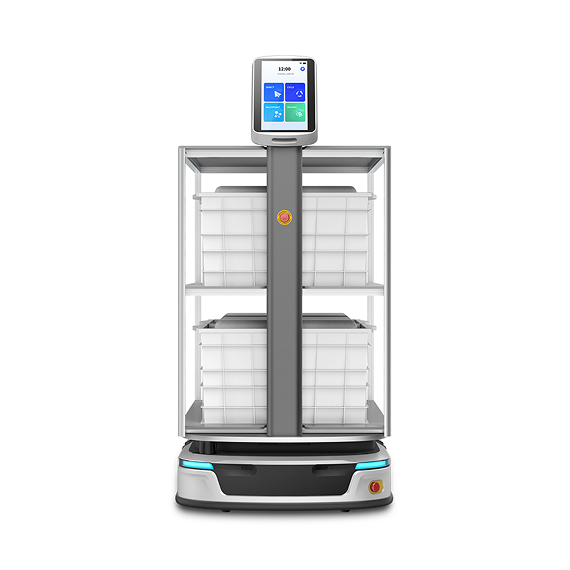

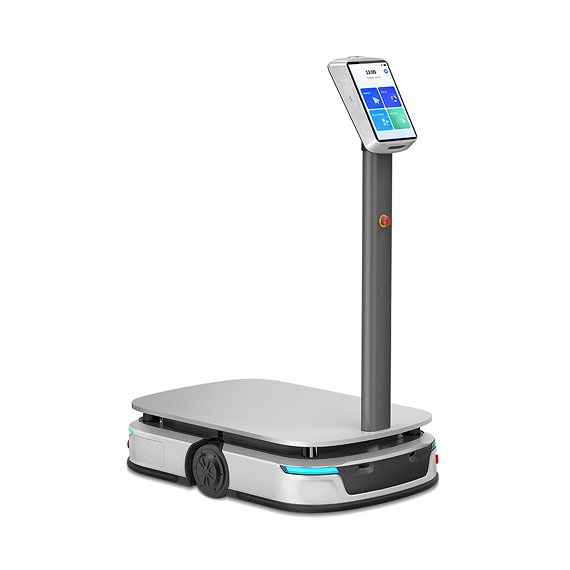

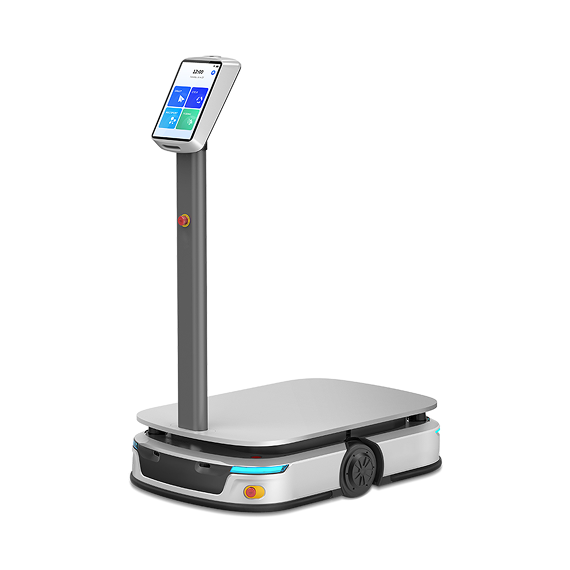

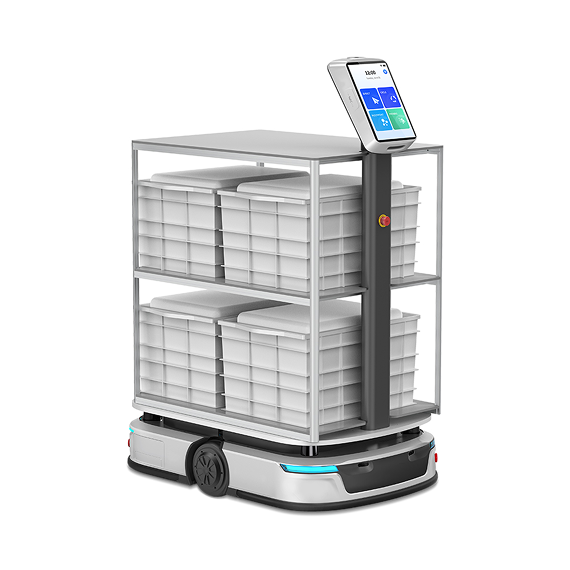

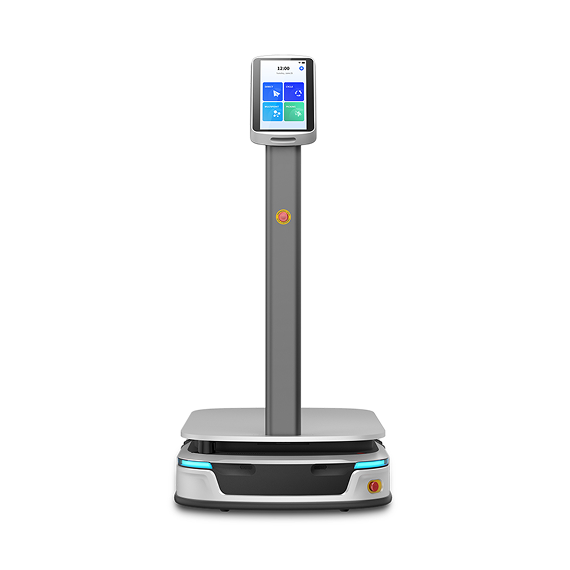

Ashvida Robotics’ Cargobot Heavy is a material transport robot that helps automate heavy movement inside factories and warehouses. It eliminates human effort and reduces forklift dependency.

Key Product Features & Hardware Hardware Capabilities

100 kg Payload Flatbed Deck

It features a wide and reinforced top surface built to hold heavy crates, manufacturing parts, custom rack attachments, etc.

3D LiDAR Safety Bubble

It scans low-lying obstacles, moving forklifts, and factory workers in real time, automatically stopping or re-routing without interrupting work.

Flexible Flatbed Extensions

It supports custom modular top fixtures, such as automated roller beds, towing hooks, or multi-shelf bins.

Real Use Case

Where Cargobot Heavy Gives the Best Results

Automotive Assembly Lines
Electronics Manufacturing Plants
E-Commerce Fulfilment Hubs
Industrial Warehouses
Heavy Production Facilities
Pharmaceutical Facilities

Operational Tasks

Core MateriaL Transport Tasks

Raw Material Movement

Component Delivery

Finished Goods Transport

Line Replenishment

Warehouse-to- Assembly Transfers

Tool & Fixture Movement

Pallet Bin Transport

Internal Logistics

Business Impact

Measurable Business & Impact Growth

Uninterrupted Material Flow

It helps avoid delays between production stages, which helps accelerate internal supply chain delivery cycles.

Injury Prevention

It eliminates manual lifting injuries and reduces the hazards of pushing heavy carts for factory workers.

Specifications

Technical Specifications & Hardware Dimensions

Cargobot Heavy is constructed with a rigid steel alloy frame, high-torque industrial drive systems, and a low centre of gravity. The system features IP-rated component sealing to prevent the hardware from dust and oil splashes.

Dimensions

85 x 60 x 32 cm

Battery Life

Up to 10 hours (continuous high-load operations)

Weight

65 kg (unloaded net chassis weight)

Charging Time

3.5 - 4 hours (supports automated docking and fast-charging)

Maximum Payload Capacity

Up to 100 kg continuous physical load

Obstacle Clearance

Crosses ground gaps up to 20 mm and climbs slopes up to 8 degrees

Maximum Moving Speed

1.2 m/s (adjustable based on safety zones)

Noise

Less than 60 dB

Demo

Watch Cargobot Heavy in action

FAQ’s

Frequently Asked Questions about the Cargobot Heavy

1. Will Ashvida assist with the installation and factory mapping process?

Yes. From Installation to mapping the area of operation, our engineering team handles full on-site deployment. We map your facility floor, establish safety transit lanes, configure pick/drop points, and train your floor team so operations start smoothly.

2. Can the Cargobot Heavy operate continuously across multiple shifts?

Yes. Cargobot Heavy supports around-the-clock 24/7, multi-shift operations through automatic self-docking charging stations, manual cable plug-in, or a fast 15-second hot-swappable battery feature.

3. Can Cargobot Heavy integrate with existing factory systems?

Yes. The Ashvida software ecosystem provides open APIs that seamlessly integrate with your facility’s Warehouse Management Systems (WMS), Manufacturing Execution Systems (MES), and automated door or lift controls to enable fully automated workflows.

4. Can multiple Cargobots coordinate together in the same warehouse?

Yes. The Ashvida Fleet Management system allows up to 50 units to share maps and dynamically assign jobs without causing traffic jams in narrow aisles.

5. What safety features prevent it from bumping into workers?

It features dual 360-degree safety LiDARs, ultrasonic proximity sensors, and physical touch bumper switches that trigger an immediate stop if anything touches the robot.
